KBO Compact Foldable E-Bike Review: A Fat-Tire Folder That Actually Rides Smooth
August 6, 2023
Some links in this article may be affiliate links. If you buy through them, we may earn a small commission at no extra cost to you.
I’ve been on a mission to find e-bikes that fit real life: limited storage, mixed surfaces, quick errands, and the occasional “let’s see where that path goes” detour. The KBO Compact is a foldable, fat-tire, step-through e-bike that aims to do all of that without feeling like a compromised ride.
Read more: KBO Compact Electric Bike and Bell Super 3R MIPS Bike Helmet
Read more: KBO Compact Electric Bike and Bell Super 3R MIPS Bike Helmet
After getting hands-on with the folding mechanism, the removable battery setup, and a proper first ride, here’s how the KBO Compact feels in the real world.
Getting Set Up: First Look and Practical Details

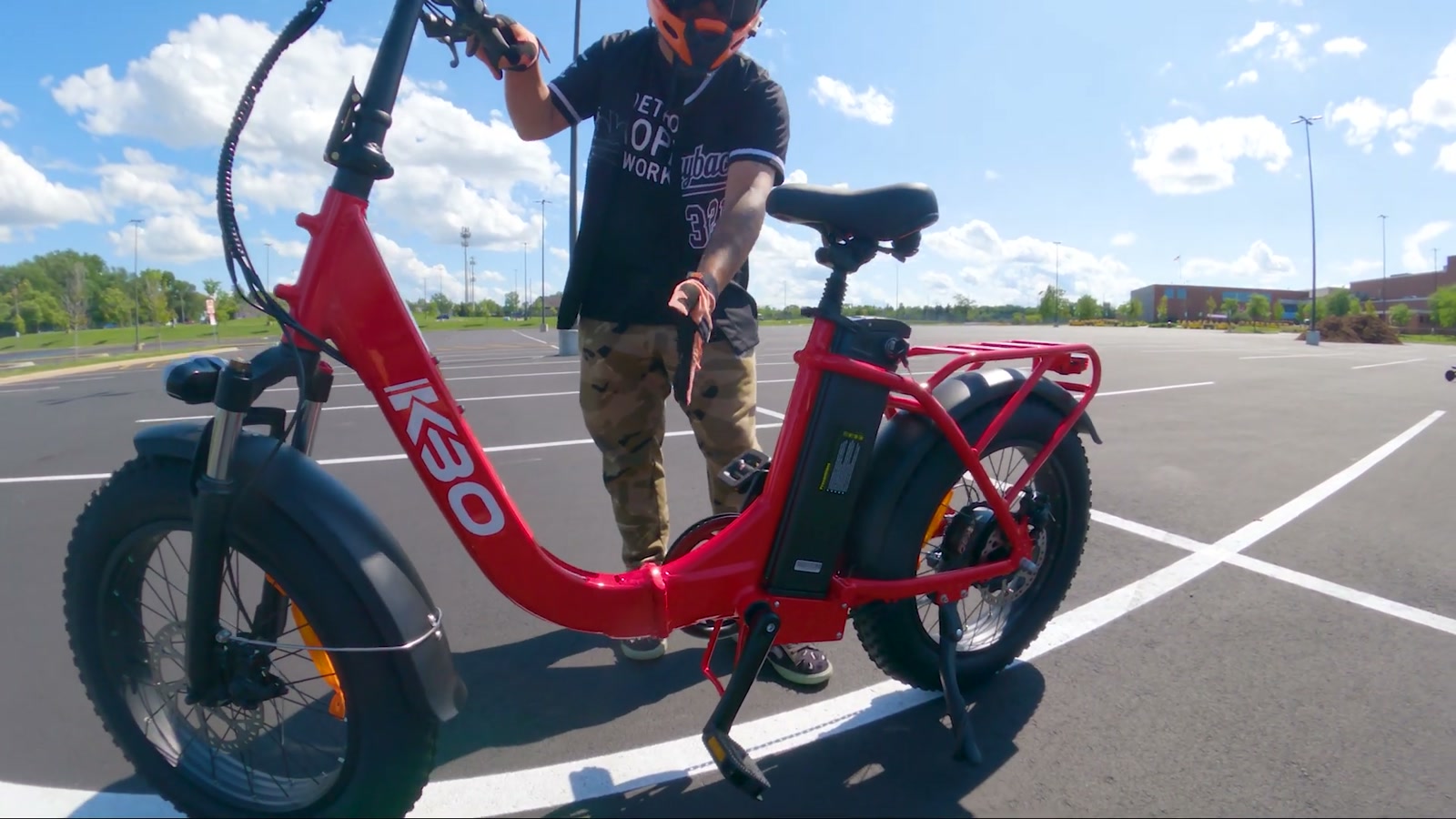

The KBO Compact is built around convenience. It has an adjustable handlebar and a step-through frame, which immediately changes the vibe compared to taller, more awkward fat-tire bikes.

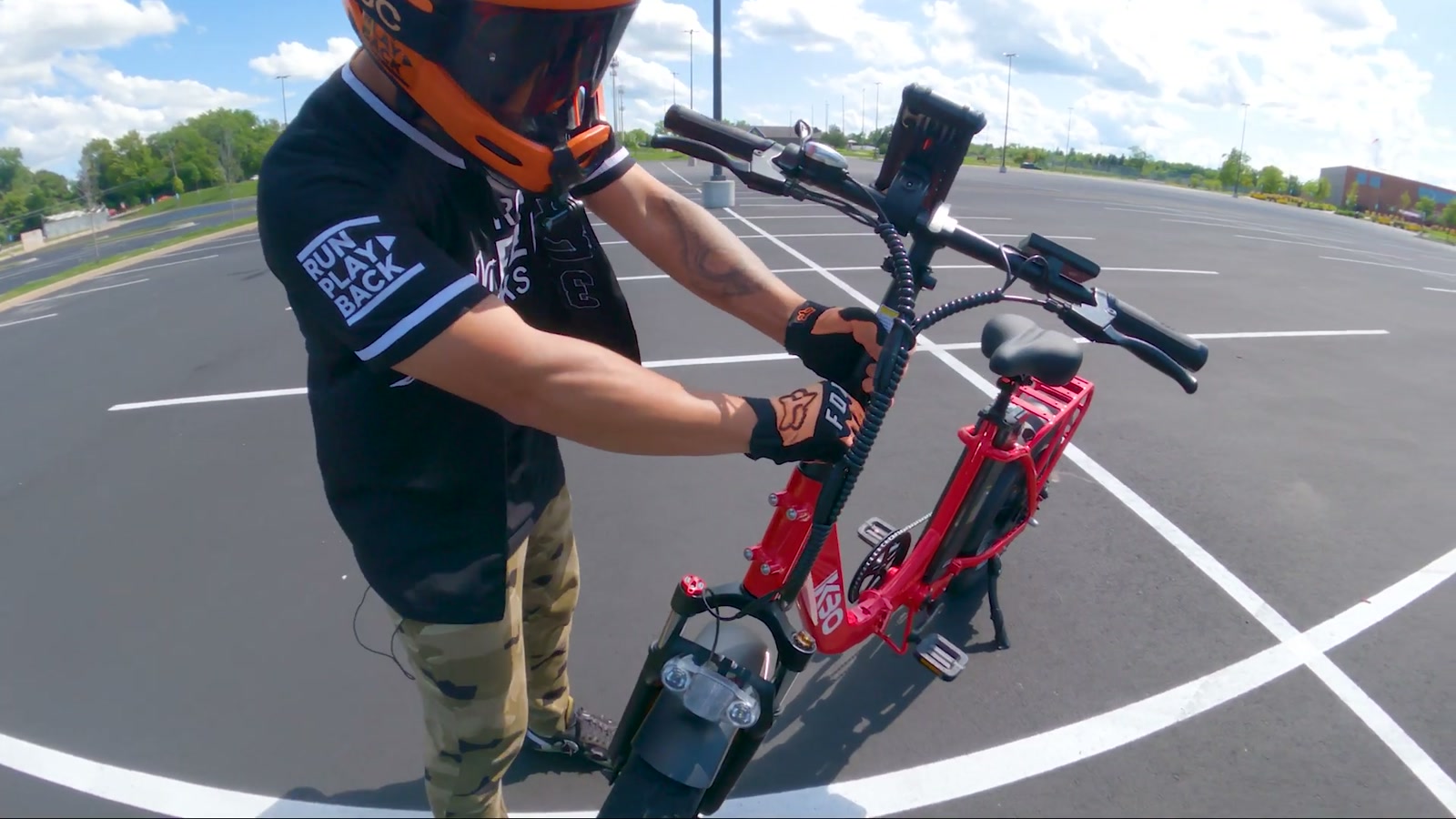

Up front, I liked seeing integrated touches that make it feel ready for daily use:

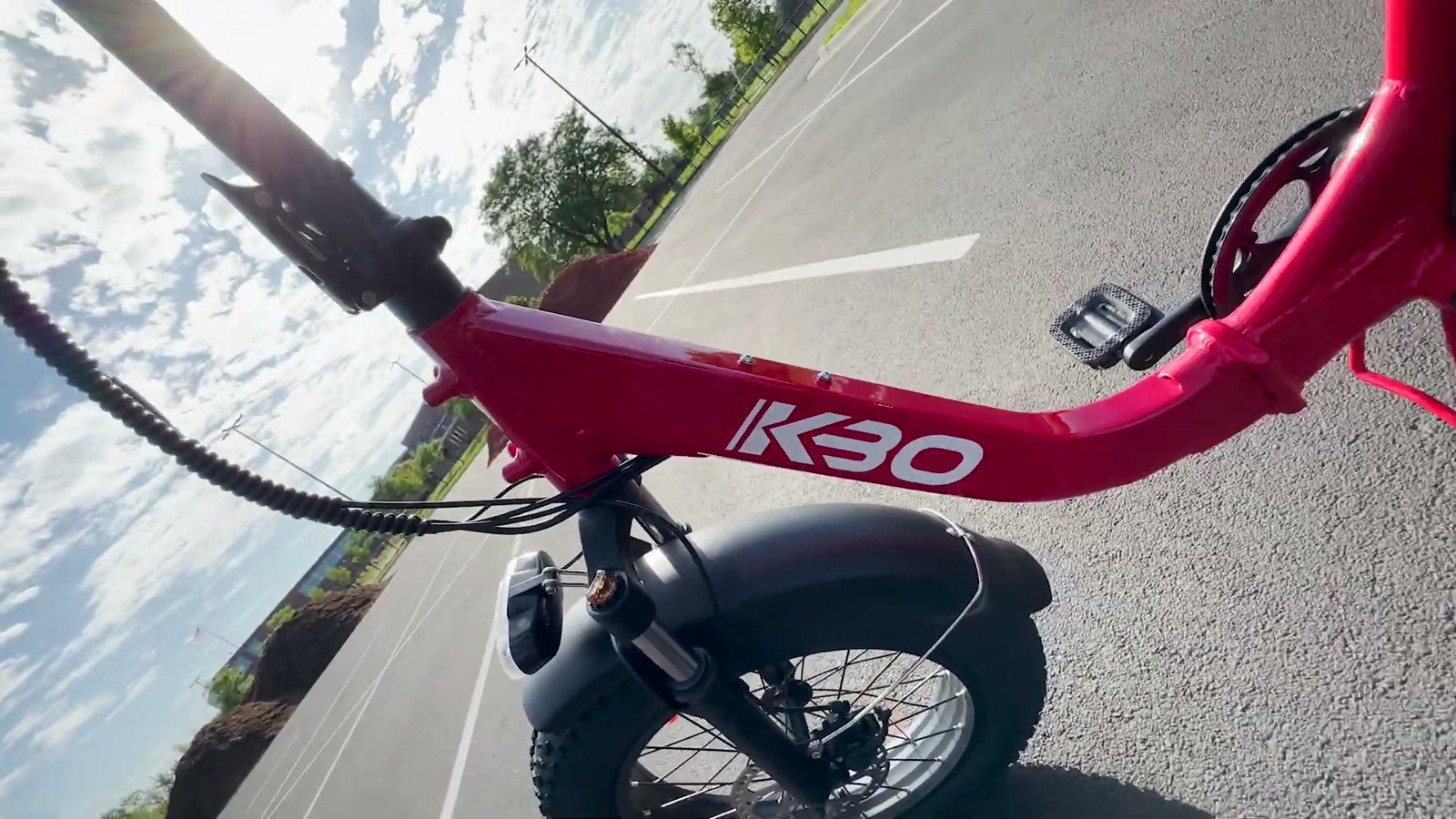

Integrated headlight with a low-light sensor
Integrated front fender
Wide ergonomic grips
Right-hand thumb throttle
A basic LED display
It also has mounting points on the front of the frame if you want to add a front basket, which is a big deal for errand runs.
Out back, it’s similarly commuter-friendly:
Integrated rear rack
Integrated rear tail light
Integrated rear fender
Battery: Removable and Easy to Live With
The KBO Compact uses a removable 48V 15.6Ah battery. The key system matters here: it has to be set to the correct position to unlock and remove the battery.
Once I got the hang of it, pulling the battery and reinstalling it was straightforward. The battery slides onto a rail and seats cleanly. It also didn’t feel overly heavy in my hands, and I can see how carrying a spare would be doable.
Folding the KBO Compact (And the Reality of “Portable”)
The folding process is quick-release and pretty intuitive once you do it once:
1) Flip the stem lock and release the latch to drop the handlebar/stem down
2) Open the main frame latch
3) Put the kickstand up
4) Fold the bike together like a sandwich
Folded up, it’s genuinely more manageable for storage in a vehicle. But I’m not going to pretend 68.3 pounds is “grab-and-go.” If you’re lifting it into a truck, SUV, or storage corner, it’s fine. If you’re hauling it up stairs, that’s where it becomes a real consideration.
A practical move is removing the battery before lifting to shave off some weight and make the bike easier to handle.
First Ride Impressions: Smooth, Stable, and Surprisingly Comfortable
I’m a shorter rider, and my first reaction was immediate: even with the seat at its lowest setting, the saddle felt high.
That said, the step-through frame changes everything. When I needed to stop, I could just step off and plant my feet without feeling trapped on a tall bike.
I put it into pedal assist level 3 (the highest level) and rolled out.
The biggest surprise: it was way more comfortable than I expected.
Between the fat tires and the front suspension fork, it smoothed out the rough stuff nicely. The bike also felt very maneuverable, which I always appreciate on a thicker-tired setup.
Pedal Assist and Throttle: Expect a Small Delay
Both pedal assist and the right-hand thumb throttle had a noticeable delay before power kicked in. It wasn’t a dealbreaker, but it’s something you’ll feel, especially if you’re used to instant-response systems.
Once the assist engages, the bike moves confidently and keeps a steady pull.
Speed Feel: Tops Out at 20 mph
On my ride, it took a bit to build up to top speed, and it clearly tops out at 20 mph. When it hits that point, you can feel the controller limiting speed.
For city cruising and neighborhood riding, 20 mph is a practical ceiling, and the bike feels composed at that pace.
Noise and Road Feel
The knobby fat tires add some audible tire noise, especially on pavement. The rest of the bike felt fairly quiet, and nothing stood out as rattly or sketchy.
Braking: Mechanical, But It Works
The KBO Compact uses 180mm mechanical disc brakes (not hydraulic). In practice, I still got solid stopping power. Hydraulics can feel smoother and more premium, but I never felt unsafe or under-braked during my ride.
Fit Notes: Height Matters (But Step-Through Helps)
If you’re under about 5'5", the bike may feel tall while seated. That was my experience. However, the step-through design keeps it manageable because stops and starts are easy, and you’re not forced into an awkward dismount.
Real-World Range Expectations
KBO lists an actual range of 55 miles, but range always depends on rider weight, terrain, and pedal assist level. With a 3-level assist setup, you’ll have meaningful control over how quickly you drain the battery depending on how you ride.
What We Like
Comfortable ride quality for a compact fat-tire folder
Step-through frame makes stopping and getting on/off easy, especially if the bike feels tall
Foldable design is genuinely useful for car storage and tighter spaces
Integrated fenders and rear rack feel ready for commuting and errands
Stable, confident feel on mixed surfaces
Things To Consider
68.3 pounds is not light; stairs and frequent lifting can be a challenge
Riders under 5'5" may find the seated position tall even with the seat lowered
Noticeable delay before throttle or pedal assist power kicks in
Mechanical brakes work fine, but riders expecting hydraulic feel may want more
Final Thoughts
The KBO Compact hits a sweet spot: it’s a folding e-bike that doesn’t feel like a flimsy compromise, and it rides smoother than I expected for something designed around storage convenience.
If your life includes limited garage space, occasional trunk transport, city cruising, and light off-pavement exploring, the KBO Compact makes a strong case. Just be honest about the weight and your lifting situation, and if you’re a shorter rider, plan on relying on that step-through practicality at stops.
