Mini But Mighty: I Built a Custom 18” Zooz Mini E-Bike (And It Rips)
September 5, 2023
I’ve always liked the Zooz vibe: simple, tough, and built for cruising city streets without overthinking it. But I kept wondering what would happen if I shrunk the whole experience down—smaller wheels, lower stance, and a more “mini moto” feel.
So I built an 18” Zooz mini e-bike from the ground up using a Zooz frame kit as the base. It’s compact, a little ridiculous in the best way, and way more fun than it has any right to be.
Below is how the build came together, what it’s like to ride in the real world, and what I’d improve if I were doing version two.
Mini Zooz, Big Personality
The foundation is the Zooz frame kit (frame, fork, seat). The frame is 4130 chromoly steel, and it immediately feels like the right canvas for a custom build—sturdy, clean lines, and that moto-inspired seating position that lets me slide around and find a comfortable spot.
The goal wasn’t to chase crazy top speed. I wanted a compact, nimble ride that feels playful at neighborhood speeds and looks like nothing else at the bike rack.
The 18” Wheel Decision (And Why It Changes Everything)
Going from a more typical wheel setup down to 18” completely changes the bike’s character.
It accelerates quickly and feels super nimble, but you give up some top-end speed. That tradeoff was the whole point for me: quicker responses, tighter body control, more “carve” and less “point and shoot.”

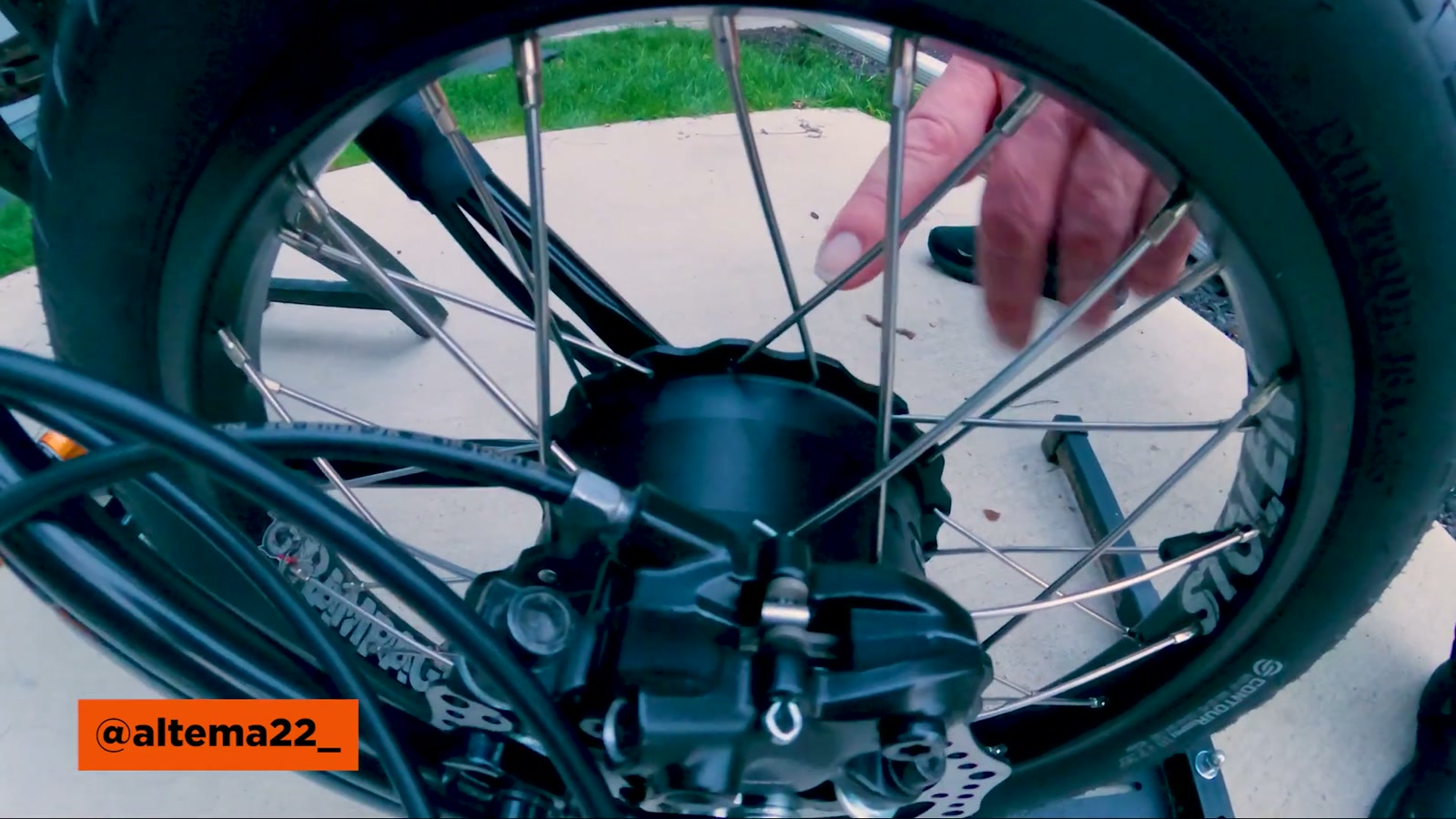

One important detail: the motor started life as a Bafang 750W geared front hub motor—but I built it into an 18” BMX wheel and repositioned it to the rear. That choice keeps the drivetrain minimal: no chain, no sprocket, and no crankset to worry about.
Because typical 18” BMX rims aren’t made for rotor mounts and hub-motor lacing, the wheel work is not plug-and-play. I had the rear hub motor laced onto an 18” stolen Rampage BMX rim and trued properly. It also meant drilling and being precise so everything stayed strong and lined up.
No Pedals, No Problem: The Peg Setup
Once the bike sits lower on 18s, ground clearance becomes a real issue. A normal crankset would be an ankle-biter—pedals would be way too close to the pavement.
So I went full mini-moto:
I removed the crankset completely
I ran BMX pegs instead
I wrapped the pegs in grip tape so my feet stay planted
It takes a little getting used to if your muscle memory is hunting for pedals, but once my feet found their “home,” it made the bike feel even more like a compact electric pit bike.
Controls and Power Delivery: Smooth, Surprisingly Punchy

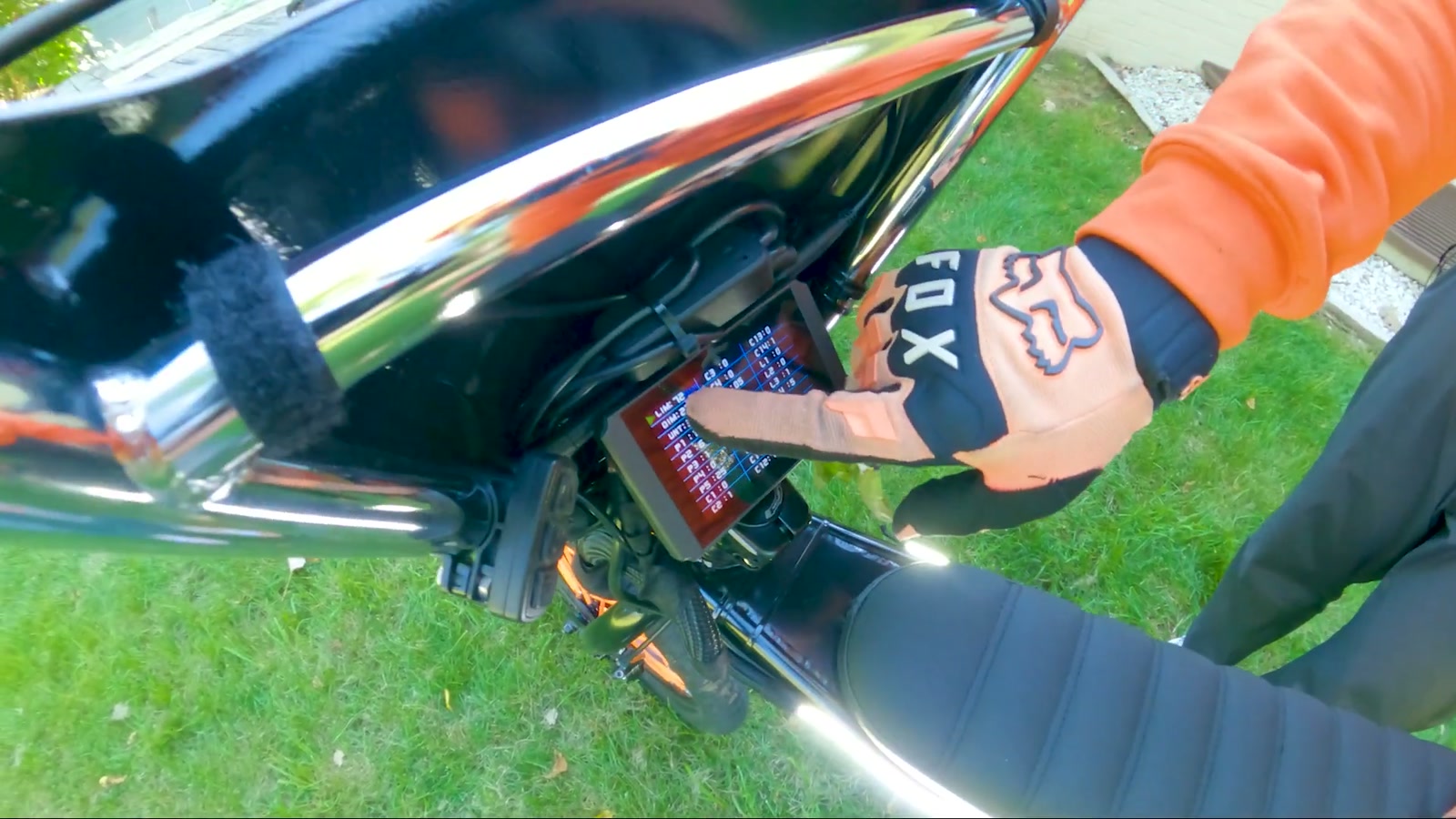

For the controller, I used a 35 amp KT controller mounted under the seat, with a color display up by the stem.
Instead of pedal assist levels, I run power levels—five steps of how hard the bike hits.
Even at moderate power, the bike feels punchy for its size. The throttle response is smooth and predictable, but it’s absolutely not a toy. If I’m sloppy with body position and throttle, it’ll remind me quickly—especially because the bike is short, low, and eager.

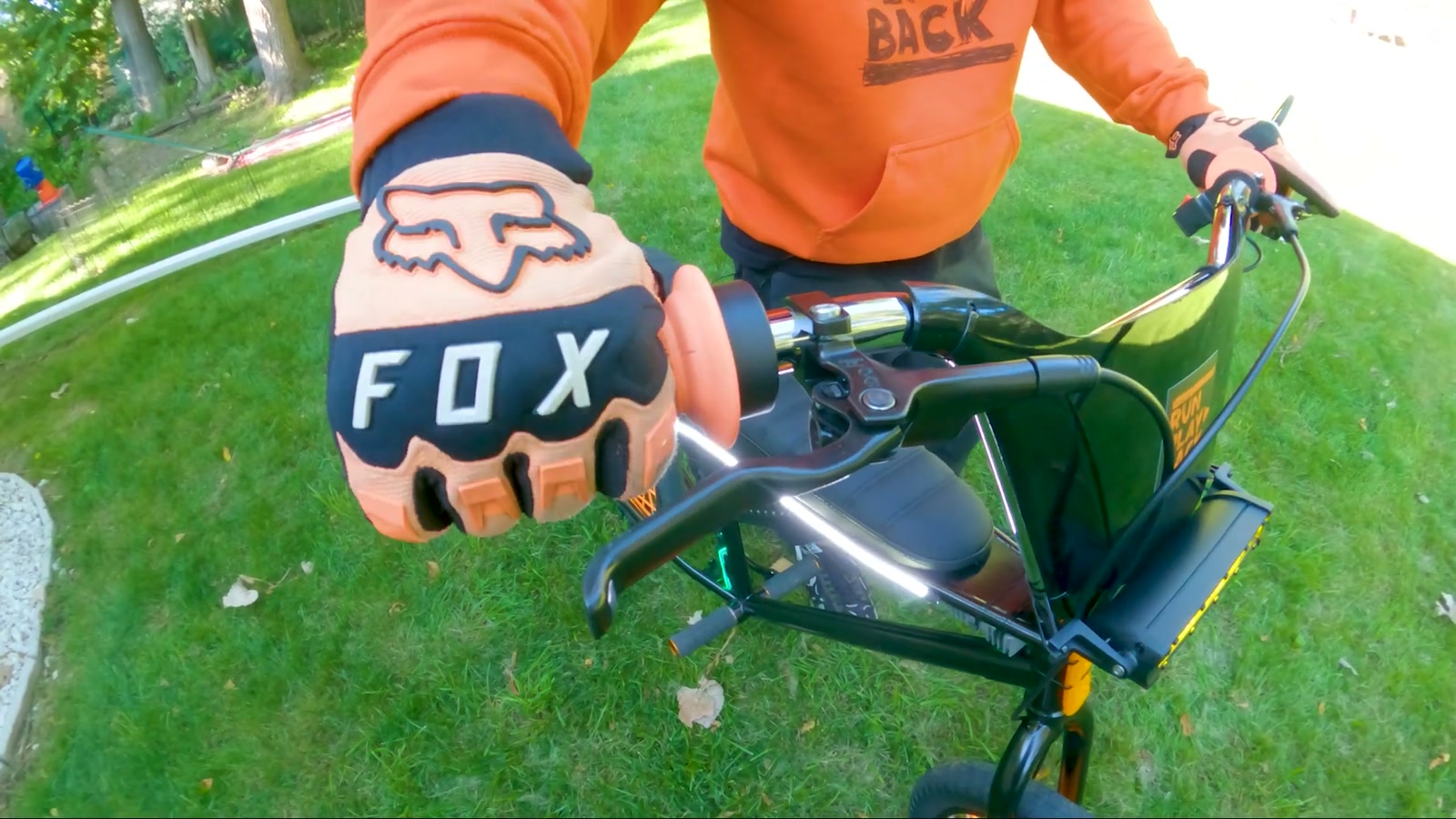

I also swapped to a full twist throttle, which is a must for the mini-moto vibe. That single change makes the whole bike feel less like a “bicycle with a motor” and more like a purpose-built little cruiser.
Braking Upgrade: Worth It
I used Shimano MT200 hydraulic brakes, and I’m glad I did.
With the smaller wheels and that quick acceleration, braking confidence matters. The MT200s give me better control when I need to scrub speed quickly—especially because this bike encourages playful riding in tight spaces.
Lighting and Night Visibility
I built this bike to be ridden, not just parked for photos—so lighting mattered.
To power lights cleanly, I used a 12V step-down with an on/off switch. That feeds:
A 12V light bar headlight (yellow tint)
Side lights
A white LED strip under the seat line (it creates a clean separation between seat and frame and helps visibility)

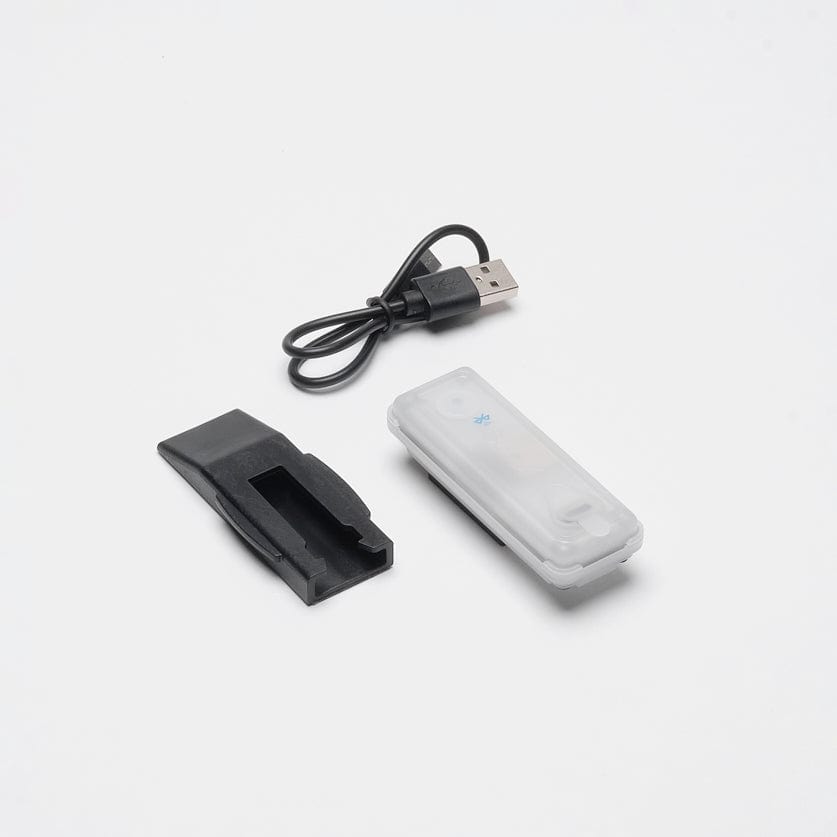

On top of that, I mounted ShredLights SL-FX+ packs and synced them via the app for patterns/colors. The end result is a bike that looks sharp at night and feels much more visible in urban traffic.
I also used the stock Zooz number plate (wrapped in black vinyl and painted on the back) to help hide wiring, because this build can get messy fast if you don’t give the cables a “home.”
The First Ride: It Feels Like Carving, Not Steering
The biggest ride takeaway: this doesn’t handle like a normal bike.
At low speeds, it’s super agile and easy to maneuver.
As speed climbs, steering becomes more about leaning and carving—almost like a longboard. If I try to force sharp turns the way I would on a regular bike, it can start to feel wobbly. Smooth inputs win.
The smaller wheels also make me feel the road more. On rough pavement or uneven terrain, the bike communicates everything. That can be fun when I’m in the mood, but it’s something to know before you commit to an 18” setup.
Once I adapted—keeping turns calculated and using my body position instead of “handlebar steering”—it became seriously fun. It feels like a compact urban cruiser that just wants to dart around and play.
Kickstand and the Little Practical Stuff
Because the bike sits lower, I had to get creative with a kickstand. I started with an adjustable kickstand, removed the lower half, and added a rubber stop so it parks securely.
Little details like that matter on a custom build. When you change wheel size and stance, you end up touching a lot more “boring” components than you expect.
What We Like
The compact 18” stance makes the bike feel unique and playful
Quick, lively acceleration and a super nimble feel at low speeds
Minimal drivetrain: no chain, no sprocket, no crank maintenance
Full twist throttle nails the mini-moto vibe
Shimano MT200 hydraulics feel like the right braking match
The lighting setup (12V step-down + ShredLights) makes it look great and ride safer at night
The Zooz frame kit is a solid platform for creativity
Things To Consider
Wheel build complexity is real: lacing/drilling/truing and rotor clearance aren’t beginner tasks
Handling is different: higher-speed turning is more about leaning than steering
Smaller wheels transmit more road texture; rough streets feel rougher
Pegs take some adjustment if you’re used to pedaling or repositioning your feet constantly
Wiring can get busy fast if you don’t plan cable routing and mounting locations
Final Thoughts
This 18” Zooz mini build is one of those projects that reminds me why I like EV tinkering in the first place. It’s not about chasing the biggest numbers—it’s about shaping the ride feel.
The smaller wheels turned a familiar Zooz-style cruiser into something that feels more like a compact, carve-y, urban toy you can actually commute around on. It takes a little practice to ride smoothly, but once it clicks, it’s addictive.
If you’ve already got a bigger e-bike for longer rides, this makes an awesome companion build—simple, eye-catching, and built for chill vibes through city streets.
