Winter-Proofing My Solar Power Station: A Simple DIY Self-Heating Enclosure That Actually Works
December 17, 2024
If you run a solar power station in a garage or shed, winter gets real… fast. I’m in Michigan, it’s December, and single-digit nights are normal. My off-grid e-bike shed is a resin shed with basically zero insulation, so even though my diesel heater can make the space comfortable when I’m out there working, I don’t want to burn fuel (or power) 24/7 just to protect batteries.
The bigger problem is charging.
A lot of portable power stations can discharge in very cold temps, but charging is where things get picky. With my Pecron setup, the goal was simple: keep the power station warm enough overnight so it can safely charge when solar kicks in again. I aimed to hold the power station’s environment around 50–60°F overnight, even when the shed is dropping toward 10°F.
Instead of building a complicated system with separate batteries, inverters, controllers, and wiring, I wanted something affordable, simple, and low-draw. The result: a “mini shed inside the shed” that sips power and keeps my station happy.
A mini hot box inside the shed
I started with a 3D printer enclosure tent. These are made to stabilize temps for printing and contain fumes, but they’re basically perfect as a ready-made insulated enclosure for a power station.
What I liked immediately:
It’s an enclosed, zip-up space that traps warm air.
It has a clear window so I can still see my power station’s screen.
It’s designed to handle heat in a controlled way.
It even came with a small LED light bar that mounts to the frame, which is a nice bonus when I’m digging around in there.

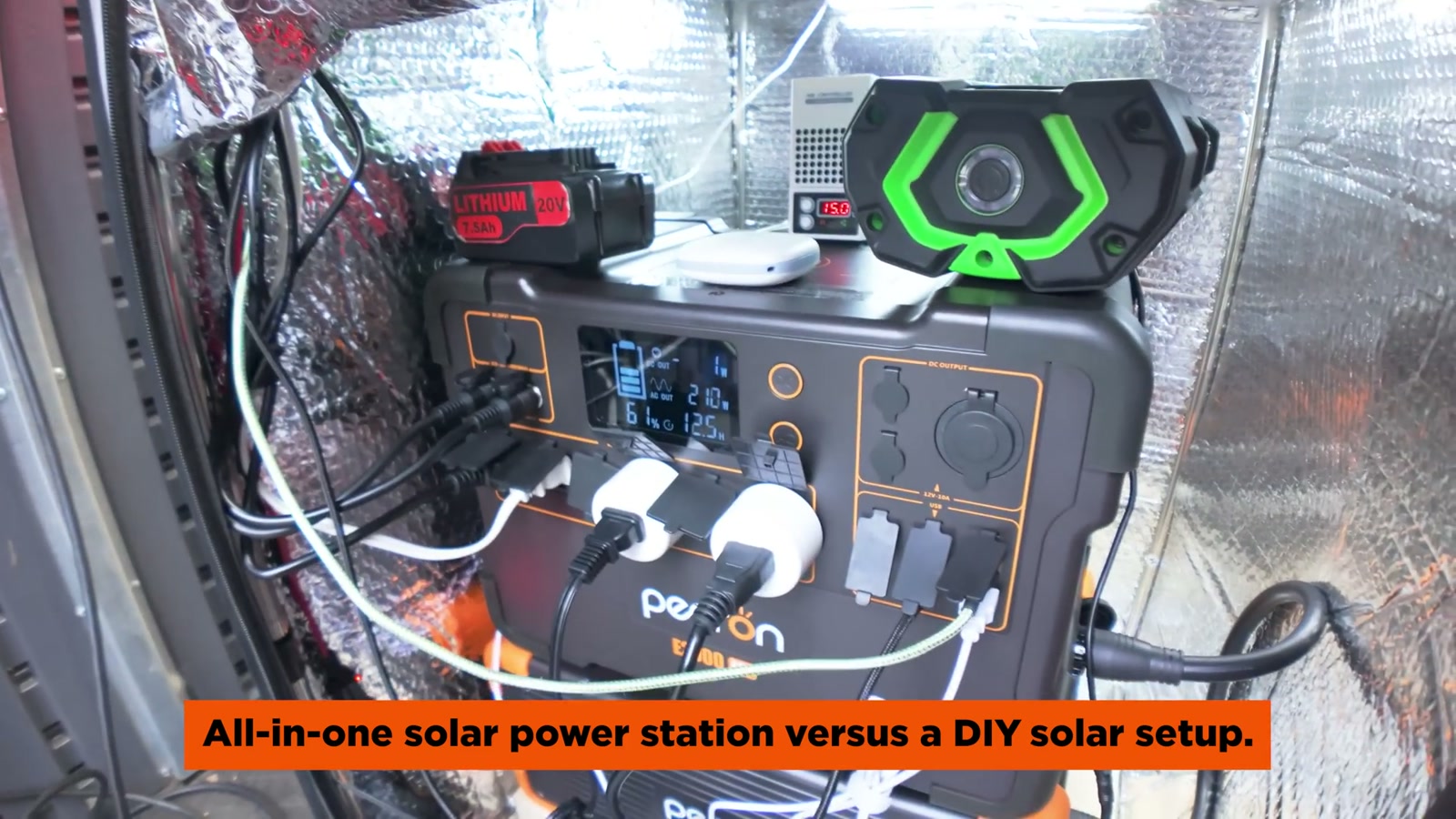

This tent became my insulated “hot box” where the power station, expansion battery, chargers, and a handful of tool batteries can all live together.
Insulation that makes the heater’s job easy
The tent alone helped, but I wanted to reduce heat loss as much as possible so the heater wouldn’t have to run constantly.
I lined/reinforced the setup using foil bubble insulation (reflective aluminum film with air bubbles). The goal here isn’t to make the shed warm—it’s to create a barrier so the warm air inside the enclosure stays inside, instead of getting sucked out by the freezing air around it.
I also threw a moving blanket over the top for extra insulation. It’s not fancy, but it noticeably helps the enclosure hold temperature longer between heat cycles.
The key piece: a low-watt temp controller “heater”

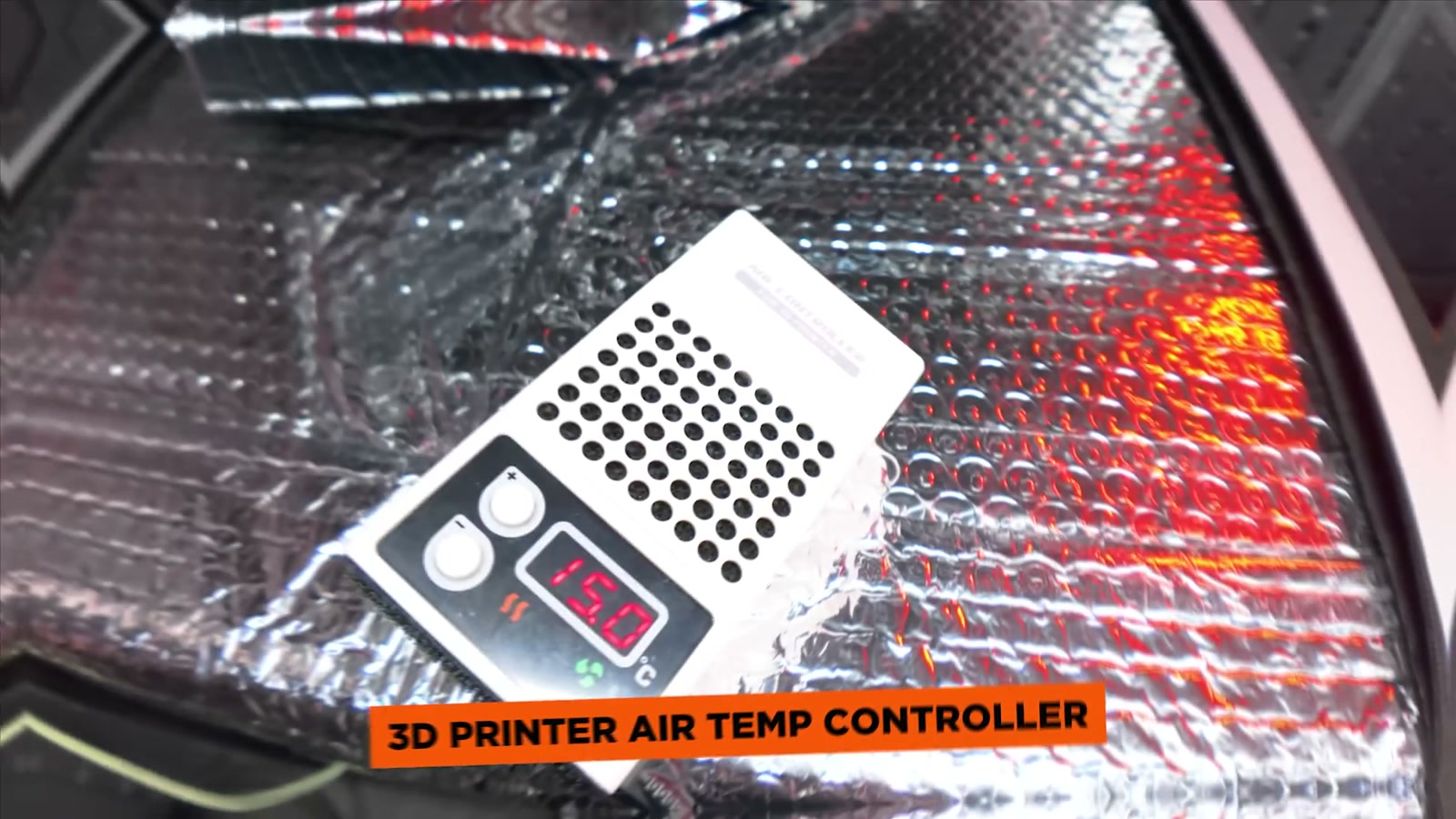

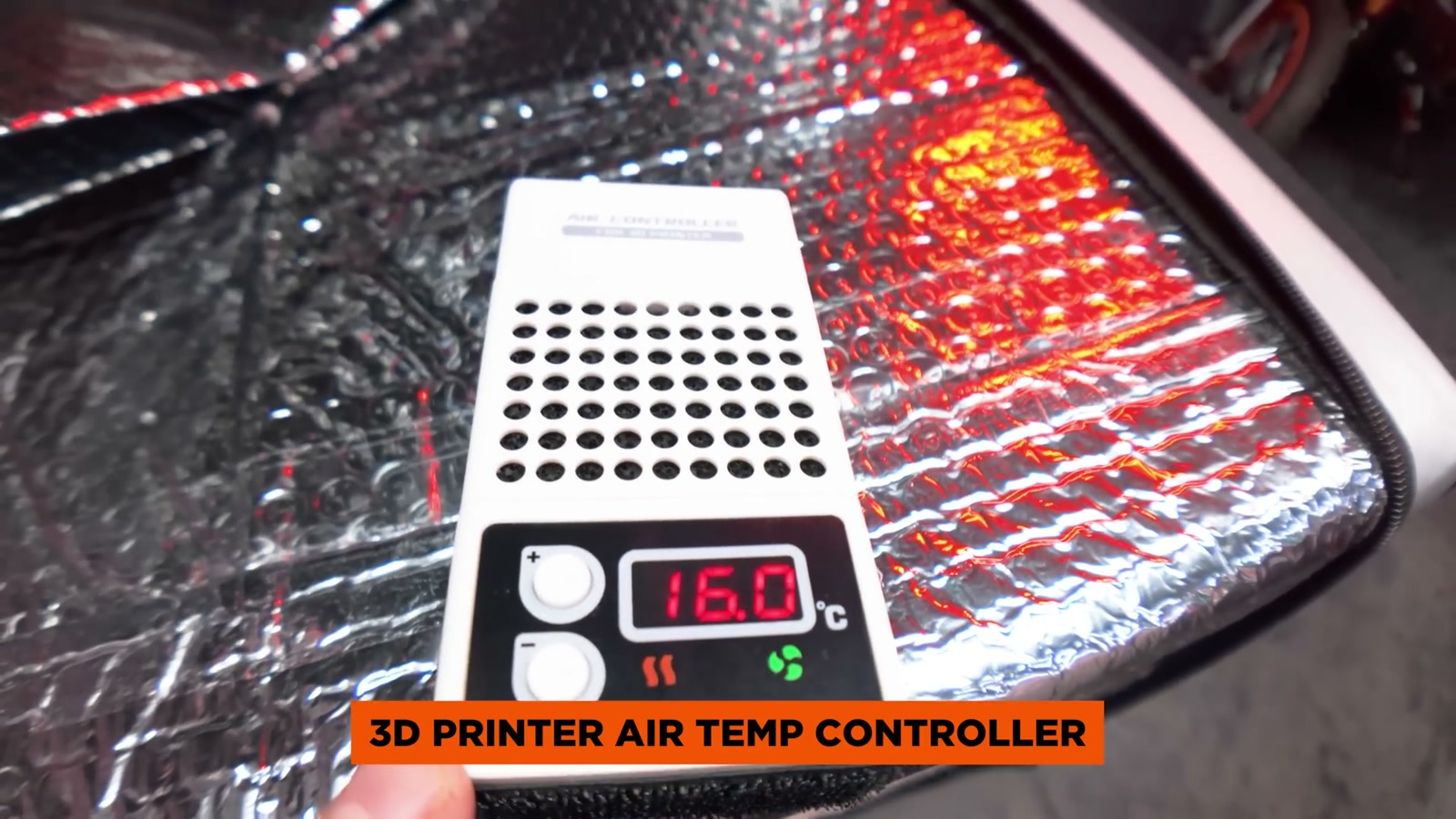

The most important part of this whole build is a small 3D-printer-style air temperature controller/heater.
This is what makes the setup feel set-and-forget:
I set a target temperature (I used about 15°C).
It automatically cycles to maintain that temp.
It only draws power as needed.
What impressed me most is how little power it uses. Depending on conditions and settings, I saw it operating in a very low range and ramping up only when it had to. That’s the entire reason I went this route instead of something like a heated blanket or a coop heater: I wanted the smallest possible energy hit overnight.
Mounting was easy. I used Velcro on the bottom and stuck it right on top of the Pecron. With the heater sitting up there, warm air blows upward and then circulates around the enclosure.
How I packed the enclosure (and why it matters)
This enclosure size worked out well for the way I actually use my shed.
Inside, I can fit:
My Pecron power station
My Pecron expansion battery
A couple of chargers
Several tool batteries

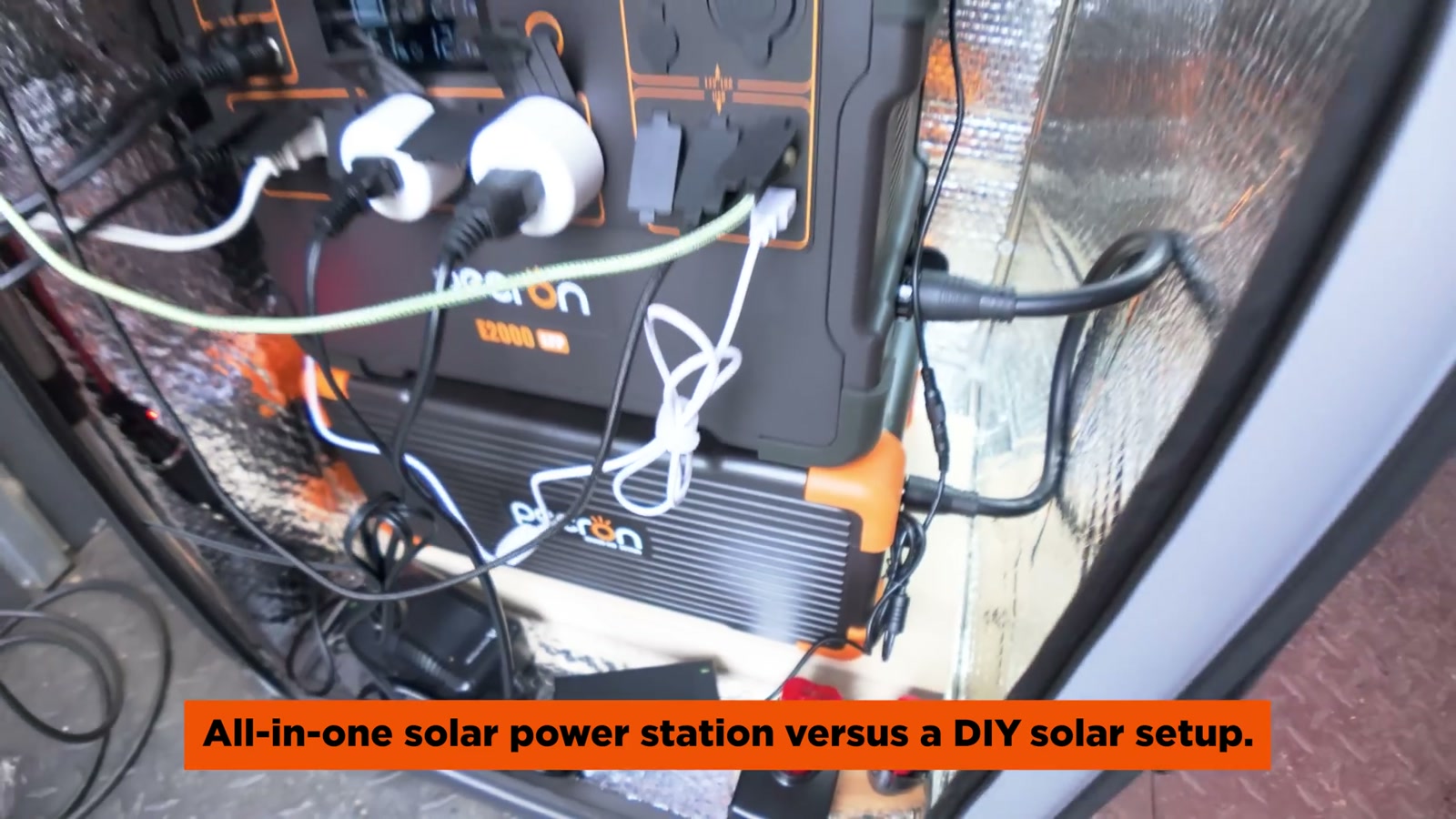

I also route the important wiring through the enclosure so everything stays tidy: connections going to the shed (like lighting) and the solar inputs. Once everything is in place, I just zip it down to seal the warmth in.
To keep the top from sagging and to add a little “work shelf,” I added a plastic boot tray on top of the tent. That helps protect the enclosure from getting crushed and gives me a place to toss keys or small tools while I’m working.
Remote monitoring: knowing it’s safe without walking out to the shed
To keep an eye on what’s happening inside the enclosure, I installed a Govee WiFi thermometer.
This has been huge for peace of mind because I can:
Check temperature and humidity in real time from anywhere
Review temp trends over time
Set an alert if temps drop too low (I set mine to alert below 30°F)
That data also helps me tune the whole setup. When I can see how quickly the enclosure cools down overnight, I can adjust how aggressive I want the heating schedule to be and protect battery life.
Smart plug scheduling (simple and effective)
Because the heater turns on automatically when it has power, pairing it with a smart plug makes the system even easier to manage.
I can schedule when I want the enclosure heating “enabled,” and let the thermostat controller handle the rest. It’s an easy way to avoid wasting power when I don’t need heat, while still keeping the station in the safe zone overnight.
Real-world results and how it feels to live with
In day-to-day use, this setup has been exactly what I wanted: boring and reliable.
I don’t have to heat the entire shed all night.
The power station stays in a warmer micro-climate.
I can keep charging gear and tool batteries from getting abused by freezing temps.
I can check conditions remotely.
During the day, if I’m out in the shed, I’ll still use the diesel heater to make the whole space comfortable. But for overnight protection—when I’m not even in there—this little heated enclosure is the difference between a power station that’s ready to charge and one that’s stuck waiting for temps to rise.
What We Like
Low power draw for overnight battery protection
Simple “mini shed inside the shed” concept that doesn’t require custom wiring
Thermostat-style control keeps temps stable without babysitting
Clear window makes it easy to check power station status
Remote monitoring (and alerts) are genuinely useful in winter
Big enough to store the power station, expansion battery, chargers, and tool batteries together
Things To Consider
You’re protecting a small zone, not heating the whole shed (which is the point, but it’s worth being clear)
You’ll want to think through wire routing so zippers can close cleanly without pinching cables
Extra insulation on top (blanket, etc.) helps a lot, but it’s still a DIY setup—keep it neat and safe
Smart scheduling is optional, but it makes the system much easier to live with
Final Thoughts
If you store a solar power station in a cold shed or garage, this is one of the easiest ways I’ve found to make winter a non-issue—without spending the night dumping watts (or diesel) into a space you aren’t even using.
For my setup, the combination of an enclosure tent, a low-watt temperature-controlled heater, and remote monitoring hit the sweet spot: affordable, simple, and effective. It’s also flexible—you could use the same idea to keep e-bike batteries or tool batteries happier through winter.
