72V 3000W Ariel Rider X-Class Conversion: Real-World Ride Impressions After the Swap
July 12, 2022
Turning a 48V Ariel Rider X-Class into a 72V machine is one of those mods that sounds a little unhinged… until you ride it. I helped convert an X-Class to a 72V setup with a 3000W QS rear hub motor, a Sabvoton controller, and a big triangle battery—and the result is a completely different bike.
This isn’t a “tiny upgrade.” The first time I rolled on the throttle, it stopped feeling like an e-bike and started feeling like a legit electric commuter capable of real speed and real urgency.
The Build: What I Installed
At the heart of this conversion is a 72V 3000W QS motor kit from E Street Bikes. It’s built around a 20x4 rear wheel and comes with the controller, display, controls, and wiring to bring the whole system together.

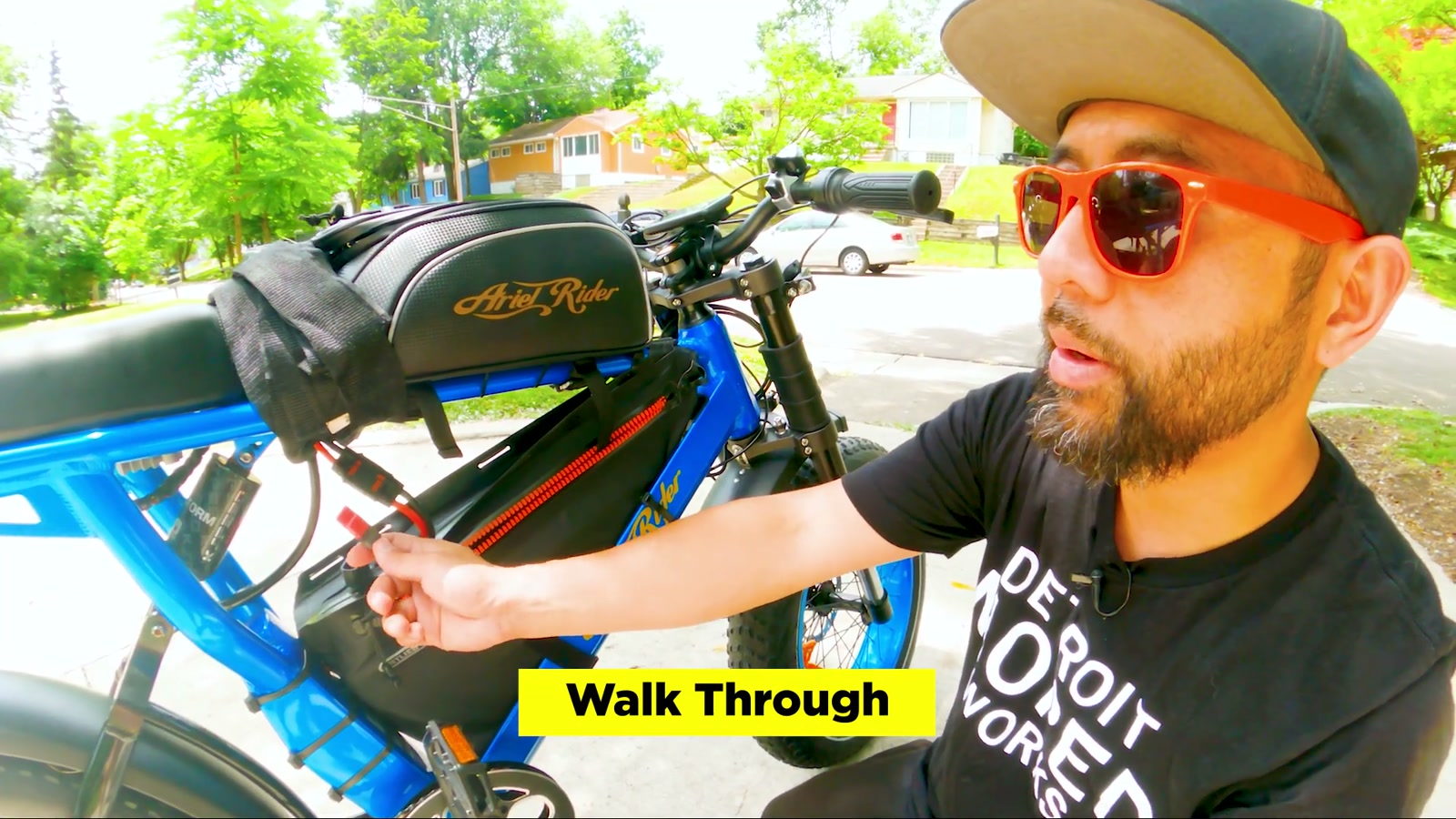

For the battery, I ran a 72V Powerful Lithium Molicel triangle pack (mounted in a triangle bag). Power delivery goes through a QS8 connector to the controller.
A few other changes made the bike feel more “finished” and more appropriate for the new power level:
Full twist throttle
TFT color display and control pad (for power levels/menu)
Lighting/controls for headlight, signals, and horn
Custom LED light bar up front (cleaner look than stock)
Torque arms on both sides (important with this much power)
Magura brakes up front (with a note: I still wanted more braking confidence)
Lowered bars for a more aggressive cafe-racer-ish stance
Rear tail light with brake function and integrated turn signals
Even parked, it looks like a different category of bike.
Install Notes: The One Part That Can Bite You
Overall, the install felt straightforward if you’re comfortable doing DIY e-bike work: mounting the wheel/motor, placing the controller, routing the harness, and setting up controls.
The one real “pay attention or pay the price” moment for me was the QS8 connector.
These connectors are no joke, and they don’t give you that super-obvious “click, it’s seated” feeling like some smaller connectors. During a bench test, the QS8 wasn’t fully seated, and under throttle it arced—enough to heat things up and melt some plastic on the controller side. Not fun.
After cleaning the terminals and fully seating the connector (really pushing it in until it was properly home), everything worked perfectly.
If you do this conversion, take this seriously: make absolutely sure that QS8 is fully seated before you apply power.
First Ride: Smooth, Strong, and Immediately Intense
I started in the lowest power level just to feel things out. Even there, it was smooth and controlled—no weird jerky hit, no sketchy surge.
Then I bumped power up, and once I went to the top level it got intense fast.
What stood out most wasn’t just raw power—it was the way the bike delivered it. The Sabvoton controller made the throttle feel ultra smooth, like it was ramping torque in a controlled way instead of just dumping power all at once. That smoothness made the bike feel more expensive and more “vehicle-like,” especially as speed built.
This conversion makes the X-Class feel like it unlocked a hidden mode.
Torque and Hills: No Drama
Climbing was effortless. On a hill, the bike didn’t feel like it needed help, and I didn’t find myself wanting to pedal.
That’s one of the biggest lifestyle shifts with a build like this: it starts to feel like a true alternative to short car trips, not just a fun bike you occasionally pedal.
Comfort and Handling: The Power Exposes the Rest of the Bike
With the stock tires still on, I noticed two things right away:
They’re louder than I’d like at speed.
Traction and ride feel become more important when you’re moving this fast.
With 72V power on tap, tires become a confidence item, not just a “nice upgrade.” I’d strongly consider a moto-style tire upgrade (like Shinkos or similar dual sport tires) if you’re going to ride it the way it wants to be ridden.
Suspension-wise, the bike absorbs some hits, but I still felt bumps—especially because the faster you go, the more the road texture matters.
Fit and Stance: Cafe Racer Vibes, But It’s Tall
This X-Class setup felt tall for me, and I couldn’t comfortably flat-foot it. With the bars lowered and the seat position pushed back, the stance became aggressive.
It looks awesome and feels great cruising, but at higher speeds—especially downhill—that aggressive position can feel a little tricky if you’re not used to it.
Riders in the 5'10"+ range will likely feel more at home on the bike’s proportions than I did.
Top Speed: Fast Enough to Make Me Back Off
I did a top speed run in the highest power level and saw about 54 mph. I felt like there was a touch more in it, but comfort and road conditions start becoming the limiting factor quickly.
At those speeds, braking, tires, and overall setup matter even more. The bike can do it—but you need to build the rest of the bike to match the power.
What We Like
The transformation is real: it feels like a totally different machine
Sabvoton controller delivery is ultra smooth and controllable
Strong torque and effortless hill climbing
Lighting controls (signals/horn/headlight) make it feel more commuter-ready
Torque arms add peace of mind with higher load on the dropouts
The custom front light bar cleans up the look a lot
Things To Consider
QS8 connector must be fully seated; a loose connection can arc and cause damage
This level of power demands better braking confidence (and likely further brake upgrades)
Stock tires start feeling like the weak link when you’re riding faster
The bike can feel tall depending on your inseam and preferred stance
Wiring/cable management takes time if you want it to look clean and be easy to service later
This is a DIY-leaning project; it’s doable, but not “plug-and-play” for everyone
Final Thoughts
This 72V 3000W conversion is the kind of mod that resets your expectations of what an Ariel Rider X-Class can be. The smooth torque ramp from the Sabvoton controller, the instant pull, and the way it carries speed make it feel more like a compact electric commuter than a traditional e-bike.
If your goal is unlocking the X-Class platform’s full potential—and you’re willing to put in the install time (and upgrade the supporting parts like tires and brakes to match)—this is a wildly satisfying build.
