EV Raceworks Master Cylinders on the EGO Power+ Mini Bike: Real Braking Power, Finally
July 10, 2024
The EGO Power+ Mini Bike is a riot when it’s dialed… but the stock brake feel was holding my build back.
On my 72v EGO mini bike setup, the rear brake especially felt like it took a full four-finger death squeeze to get serious stopping power. I wanted a brake lever that felt more like a proper moto setup: predictable bite, good modulation, and the ability to lock the rear with a controlled one-finger pull when I want it.
So I swapped the stock master cylinders for EV Raceworks units and put real ride time on them. The difference wasn’t subtle.
Why I Messed With the Master Cylinder First
Brakes are a system, and feel is a balancing act. Before I started throwing parts at it, I wanted to understand what the bike was doing mechanically.
A big part of brake feel comes down to the relationship between master cylinder piston diameter and caliper piston diameter (plus all the real-world variables like line flex and caliper flex).
On the stock setup, I pulled the rear master cylinder apart and measured it. The master cylinder piston diameter came out to 12.5 mm, and the rear caliper piston measured 30 mm (with opposing pistons).
Instead of guessing, I tried a couple of directions to see how the bike responded.
A Quick Reality Check: A Random Master Cylinder Didn’t Help
Before landing on the EV Raceworks solution, I tested a “generic” master cylinder I had on hand with a 10 mm piston.
In theory, changing piston size can move you toward the lever feel you want. In practice, this setup made things worse.
Here’s what I felt immediately:
Way too much dead travel up top
When I squeezed hard, it would hit a wall… then keep squishing
My knuckles were getting crushed because the lever travel was excessive
It did stop the bike, but it wasn’t confidence-inspiring. And the more I pushed pressure into the system, the more it exposed what felt like flex in the brake line (and possibly the caliper). I could lock the rear, but only by basically pulling to the bar and getting my fingers out of the way.
That was enough proof for me: this bike needed a better matched, higher quality master cylinder.

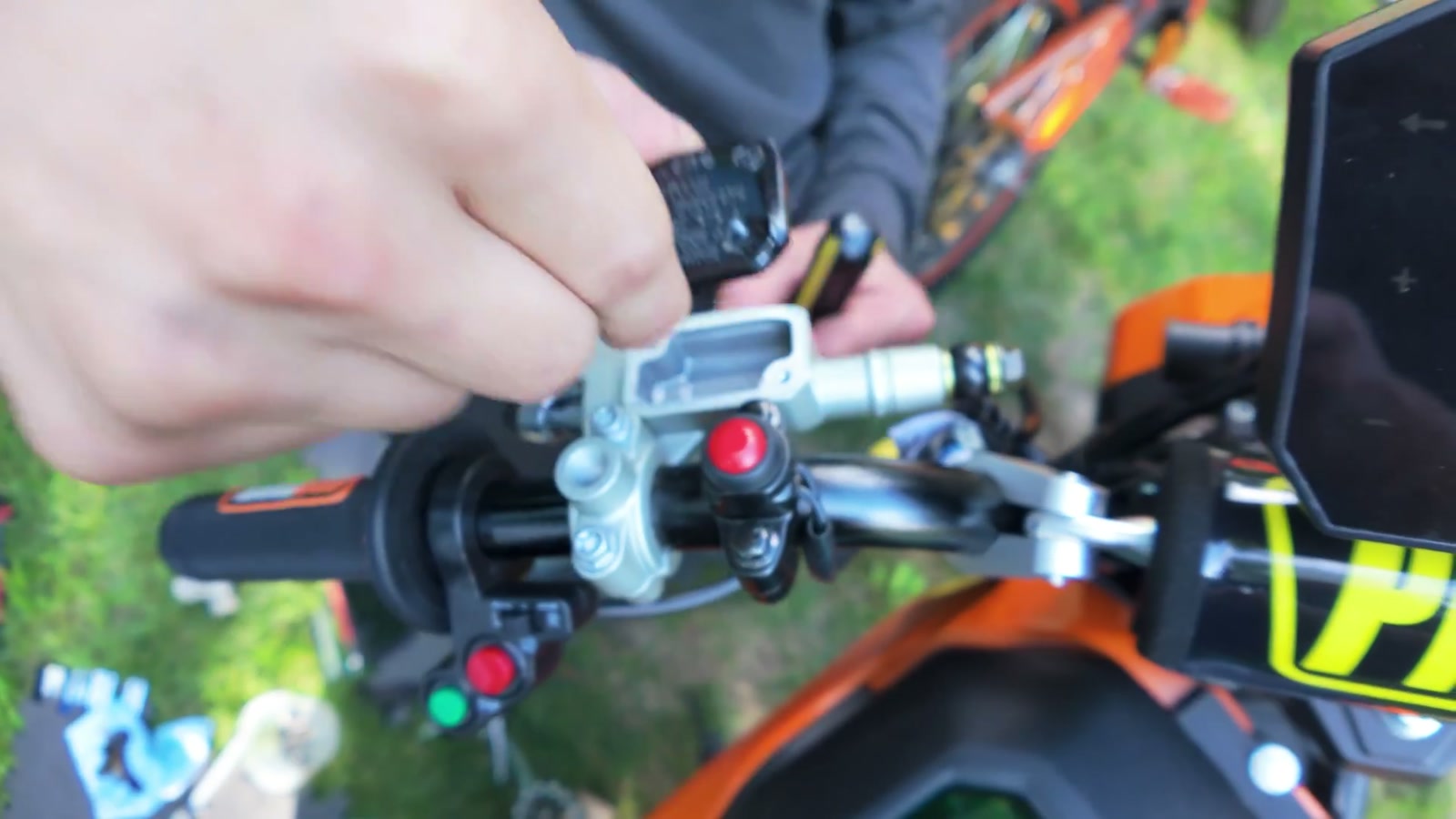

Installing the EV Raceworks Master Cylinder (Rear)
I swapped to the EV Raceworks-style moto brake master cylinder that I’ve had great luck with on other builds.
Installation was straightforward in the way you want a cockpit upgrade to be: bolt-on, clean fitment, and immediately better lever feel at the standstill.
Right away, the lever behavior changed:
Much less sloppy travel at the top
A firmer, more defined “bottom” to the pull
Better progression into bite instead of that vague “stiff but not biting” feeling
Then I rode it.
Rear Brake Ride Impressions: One Finger, Real Modulation
This was the moment I was chasing.
With the EV Raceworks master cylinder on the rear, I could comfortably lock the rear wheel with one finger. Not effortlessly like a toy brake, but in a controlled, intentional way—exactly what I want for stunt-style rear brake use and quick speed checks.
The feel became intuitive:
Light pull gives usable modulation
Pull harder and you know exactly where lockup happens
No more mystery zone where nothing happens and then it suddenly bricks
Compared to the front (which was still on the original-style master cylinder at that point), the difference was obvious. The stock-style lever needed a two-to-three finger pull to get the same kind of authority.

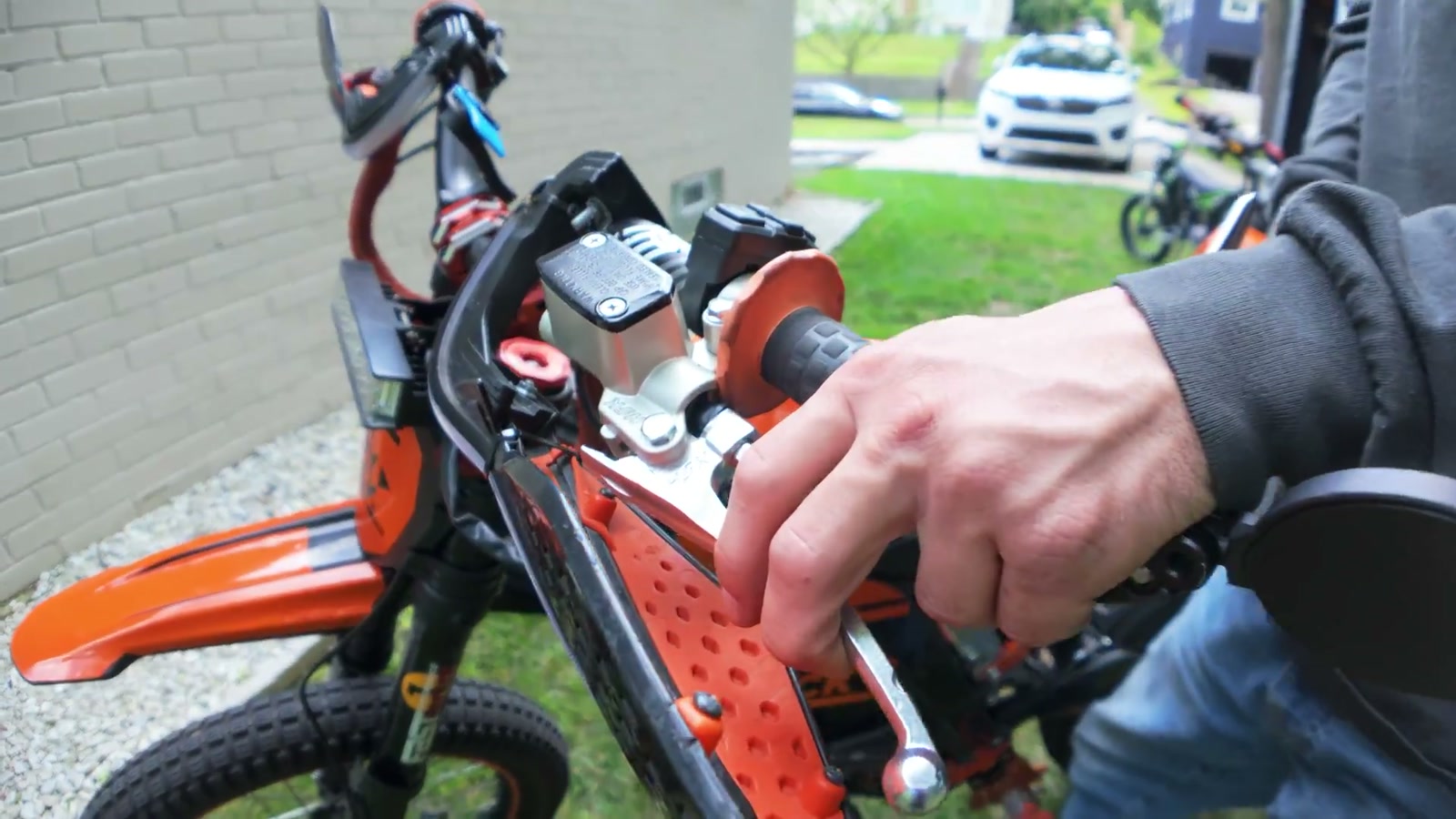

Installing the Matching EV Raceworks Master Cylinder (Front)
After the rear worked so well, I added the matching master cylinder to the front.
And that’s when the whole bike started feeling “complete.”
The front brake became more progressive and responsive, without feeling twitchy. I wasn’t trying to skid the front (that’s a great way to have a bad day), but I could feel how much quicker the bike shed speed with less lever effort.
The best part is how natural it felt using both brakes together. I ended up with a light, confident one-finger pull on each side and dramatically shorter stopping distances.
On the Road: Night-and-Day Confidence
Once both EV Raceworks master cylinders were on, braking confidence went way up.
This is the kind of upgrade that changes how you ride:
I stopped hesitating before higher-speed pulls
I used both brakes more naturally instead of over-relying on one end
The bike felt safer and more controllable, especially when things get sketchy quickly (as mini bikes tend to do)
Even with other variables still in play (brake line quality and caliper quality matter), the results here were undeniable. The EGO mini bike finally had braking to match its power.
What We Like
Massive improvement in lever feel and stopping confidence
One-finger rear lockup became realistic and controllable
Better modulation instead of vague bite and sudden “brick wall” behavior
Front brake became more progressive and responsive without feeling touchy
Makes the bike feel more “moto” and less “powerful mini bike with lawn-equipment brakes”
Things To Consider
Brakes are a system: if your line or caliper is flexy, a stronger master cylinder can reveal those limits
Too much pressure with the wrong combo can create excessive lever travel and a squishy feel
If you’re chasing the perfect lever, you may still end up experimenting with brake lines and/or calipers
Availability can vary (at the time of my install, the left/rear unit was available; the right/front may depend on demand)
Final Thoughts
If you’re pushing an EGO Power+ Mini Bike beyond casual cruising—especially with a higher-power setup—this master cylinder upgrade is one of those rare mods that immediately changes the whole riding experience.
After installing and riding with the EV Raceworks master cylinders, I’m way more confident in the bike. The rear does what I want with one finger, the front is responsive and progressive, and together they make the mini bike feel like it finally has brakes worthy of the speed.
If your current setup has you yanking four fingers just to get a reaction, this is the fix I’d start with.
